Technical Capabilities
Equipped with world-class production machinery and a complete manufacturing process to ensure premium product quality.
Core Competency Metrics
Production Capacity
Technical Specifications
Capabilities
R&D Capabilities
High-end production equipment
Equipped with advanced international machinery to ensure product precision and consistency.

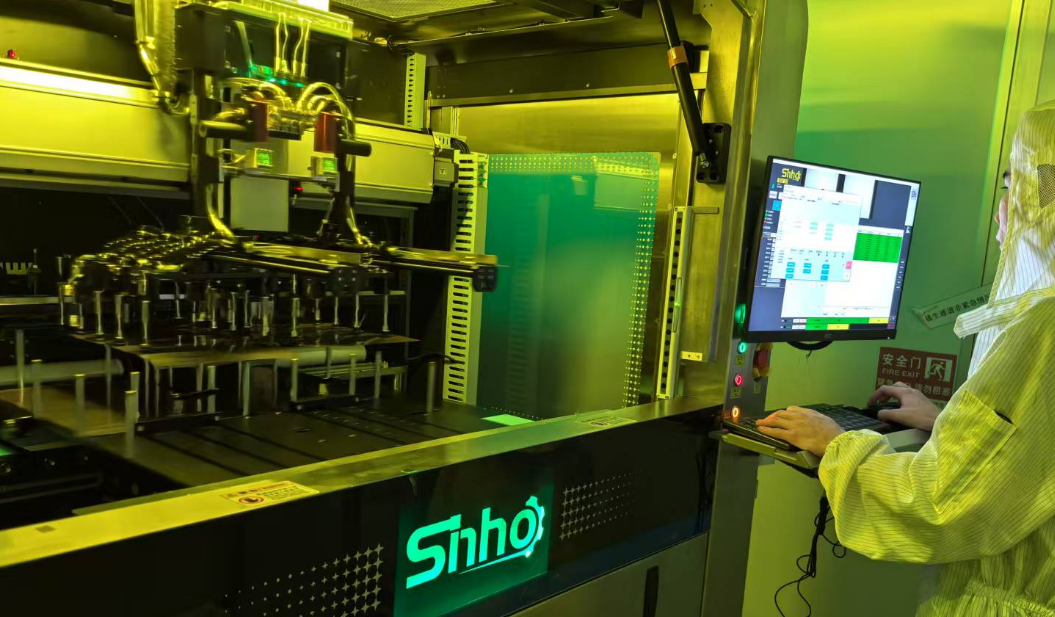

LDI Exposure Machine
China's high-end precision LDI exposure machine with accuracy up to ±10μm and support for minimum line width of 50μm

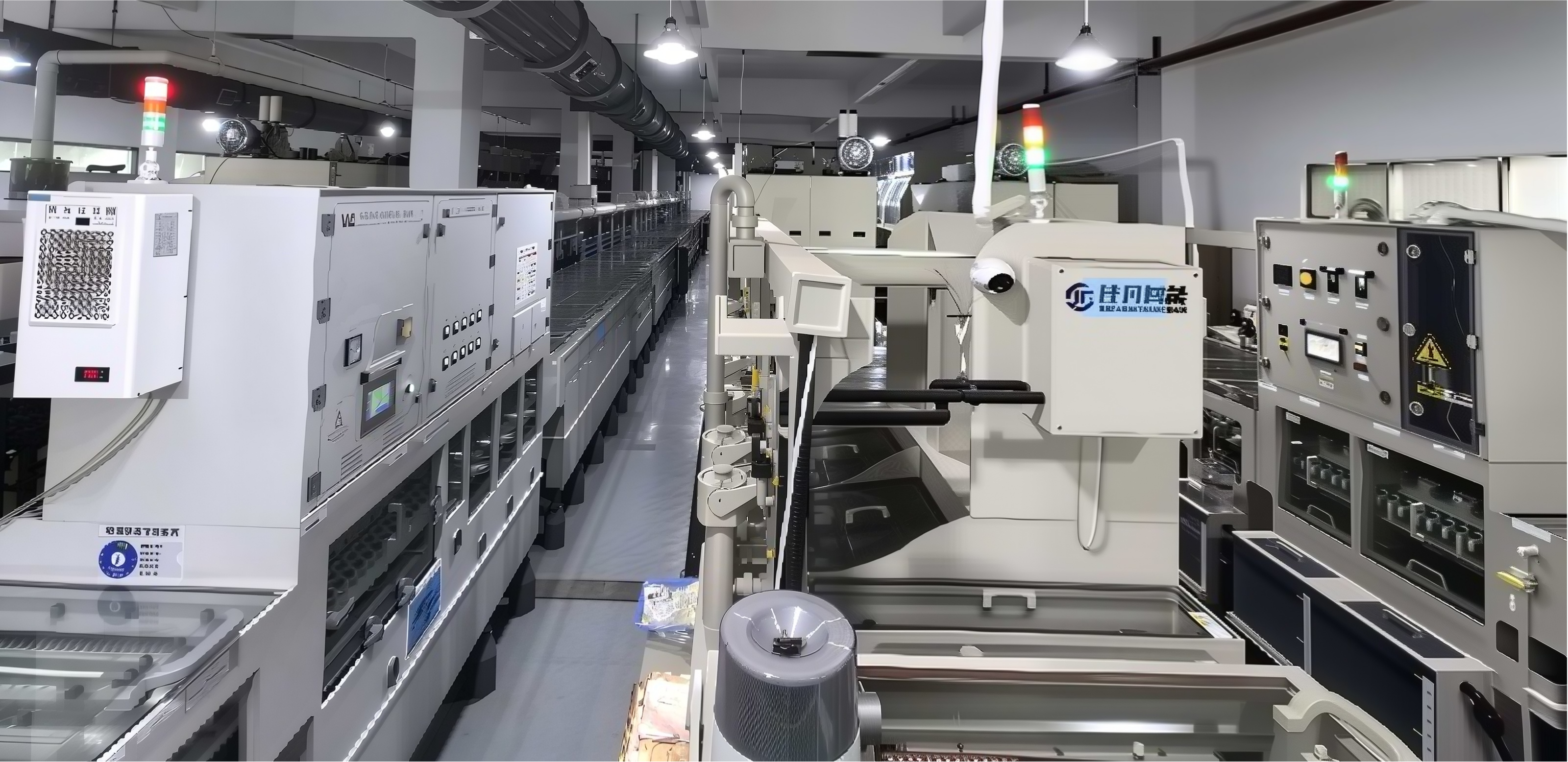

Automated Etching Line
Fully automated horizontal etching line with precise line width control, error ±10%.

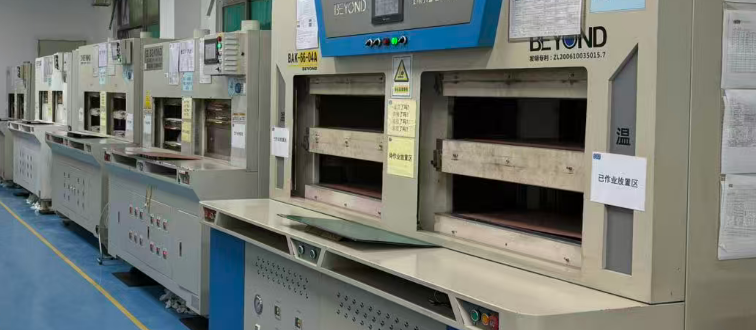

Vacuum Press Machine
Hot Press Equipment, Temperature Control Accuracy ±2°C, High Pressure Uniformity

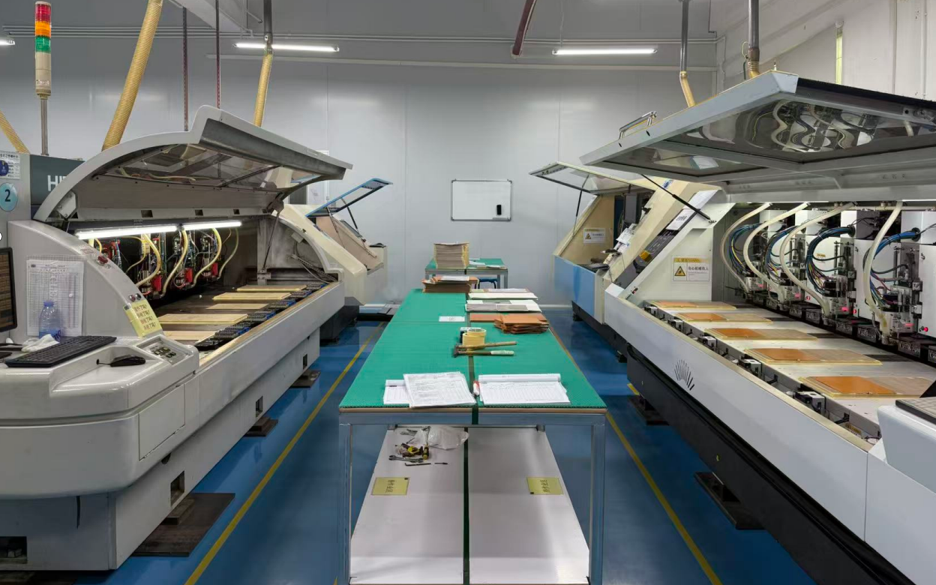

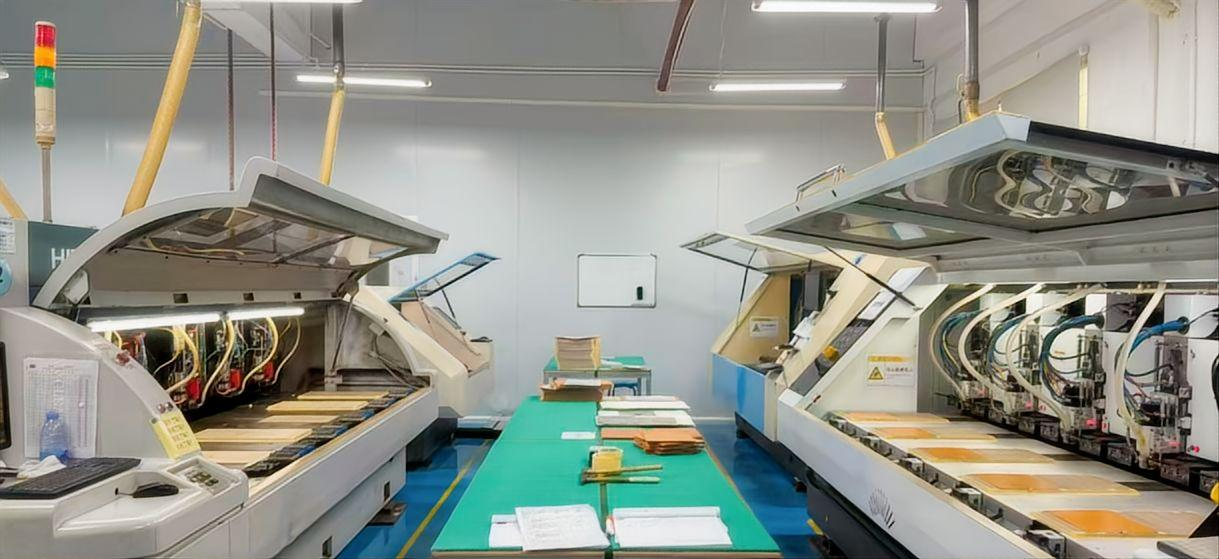

CNC Drill
Hitachi equipment, Japan; minimum hole diameter 0.1 mm, hole positioning accuracy ±25 μm

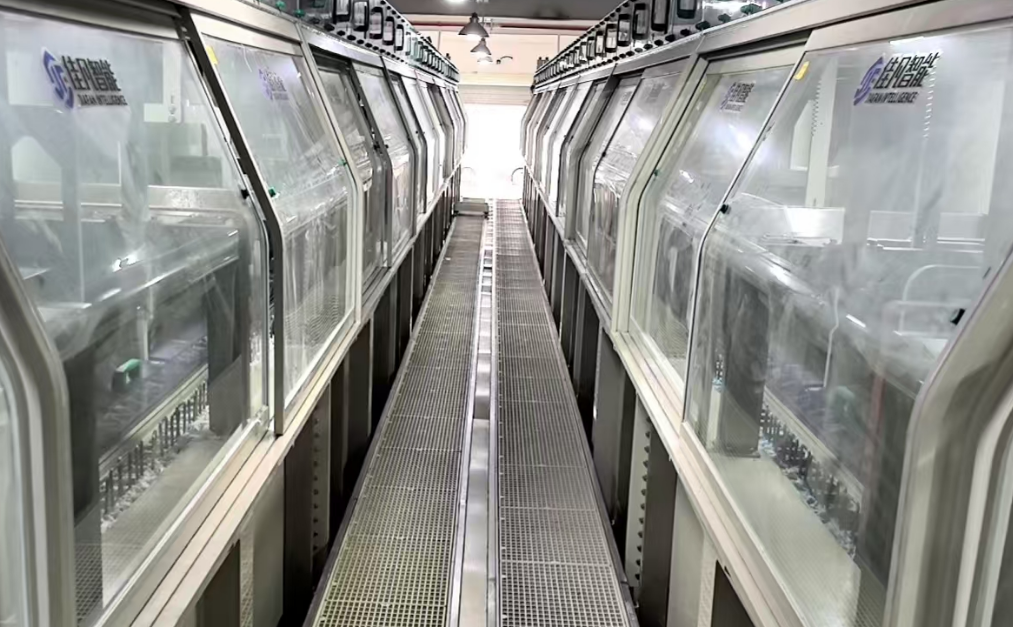

Electroplating Production Line
Fully automated vertical plating line with precise copper thickness uniformity control

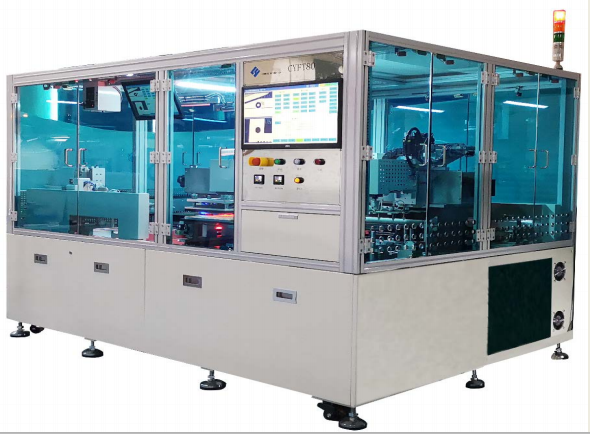

Lamination Machine
High-precision film lamination with alignment accuracy of ±50μm

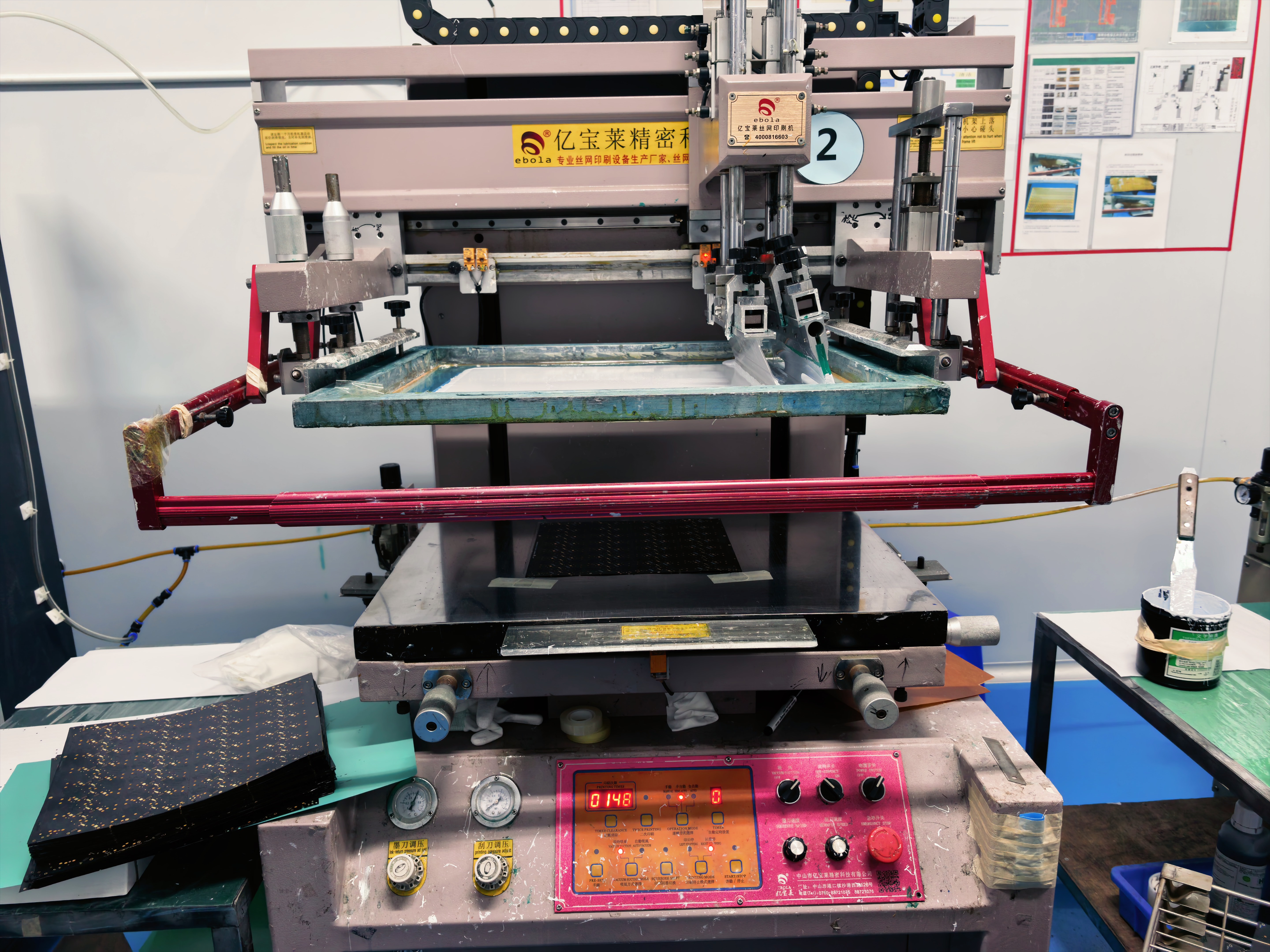

Solder Mask Printer
Fully automatic screen printing for uniform solder mask thickness

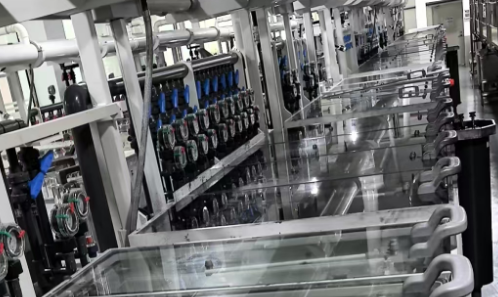

Surface Treatment Line
ENIG / Gold Plating / Tin Plating / OSP
Process Flow
Complete FPC manufacturing process with strict quality control at every stage
Cutting
FCCL Cutting Machine
Drill
Hitachi CNC Drilling Machine

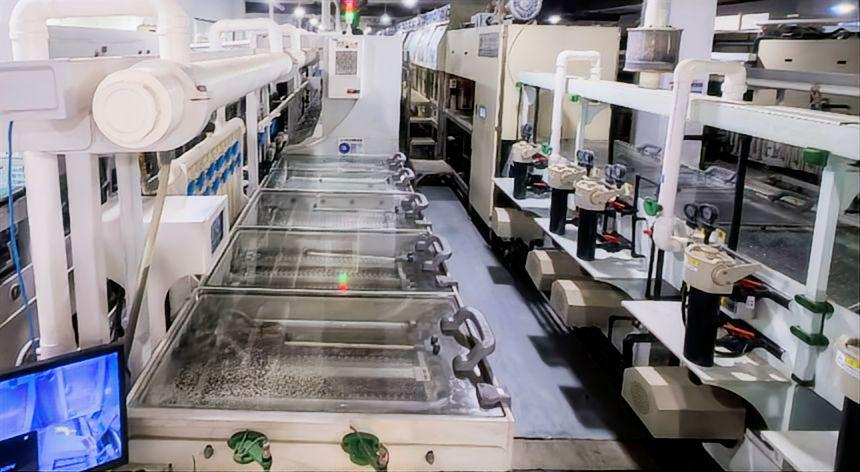

black hole
Horizontal Line Black Hole Machine
Copper Plating
VCP Vertical Plating Line
Apply photoresist film
Dry Film Lamination Equipment
LDI
Laser Direct Imaging
DES
Develop, Etch, Strip

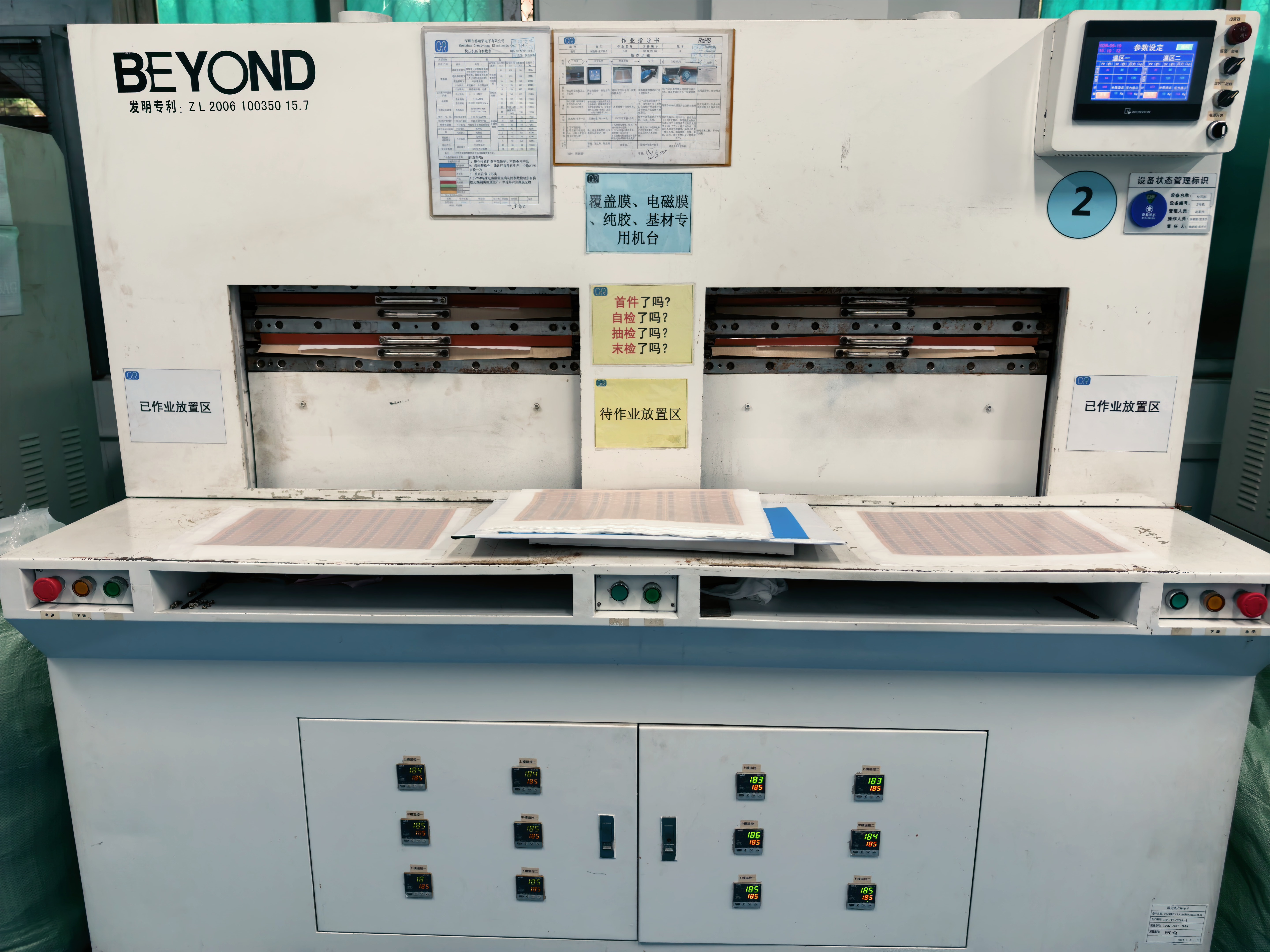

Adhesive Cover Film
Laminate Cover Film
solder mask
Solder Mask Printing Ink
Surface Finish
ENIG / HASL

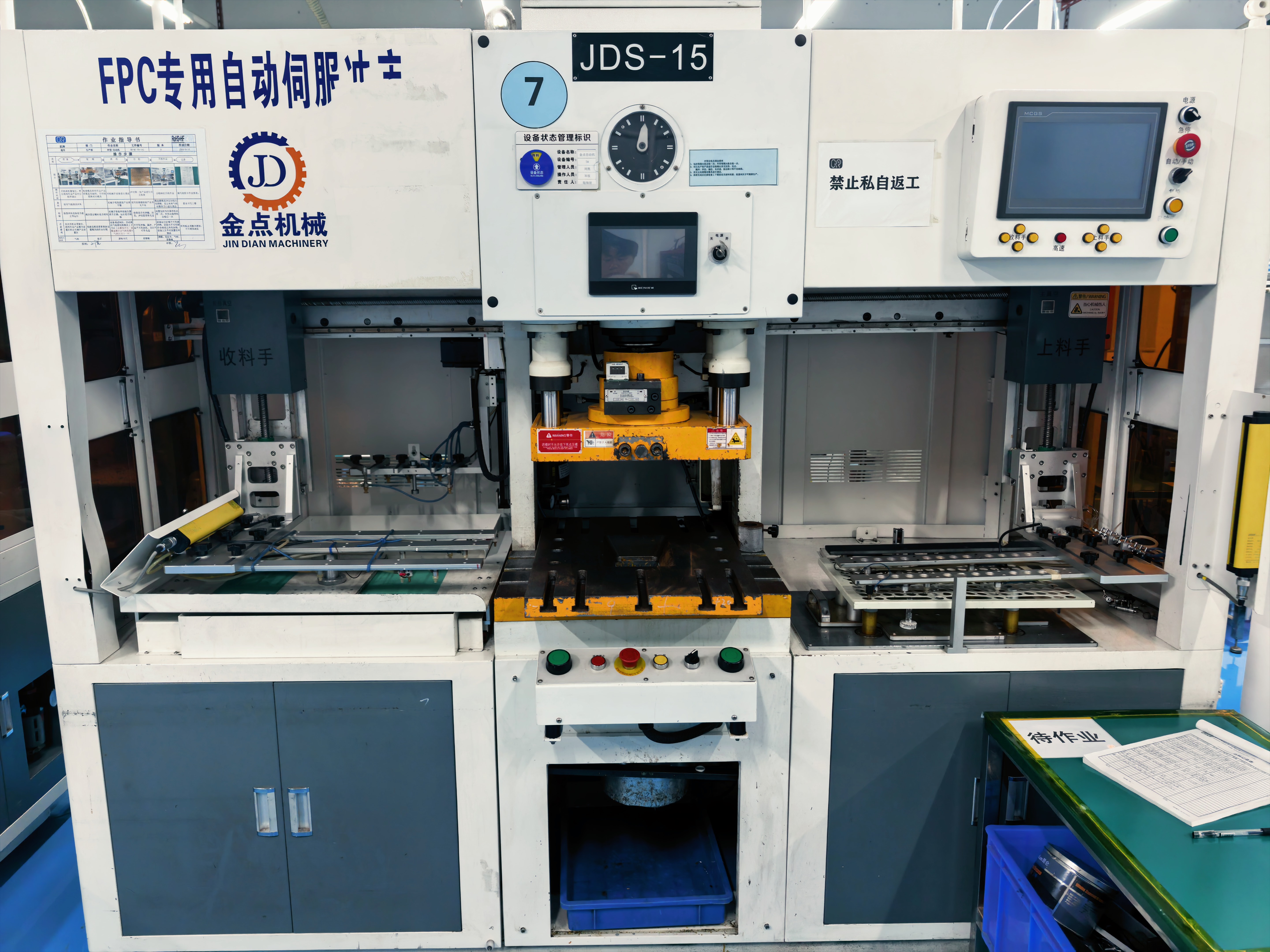

Molded
CNC Molding

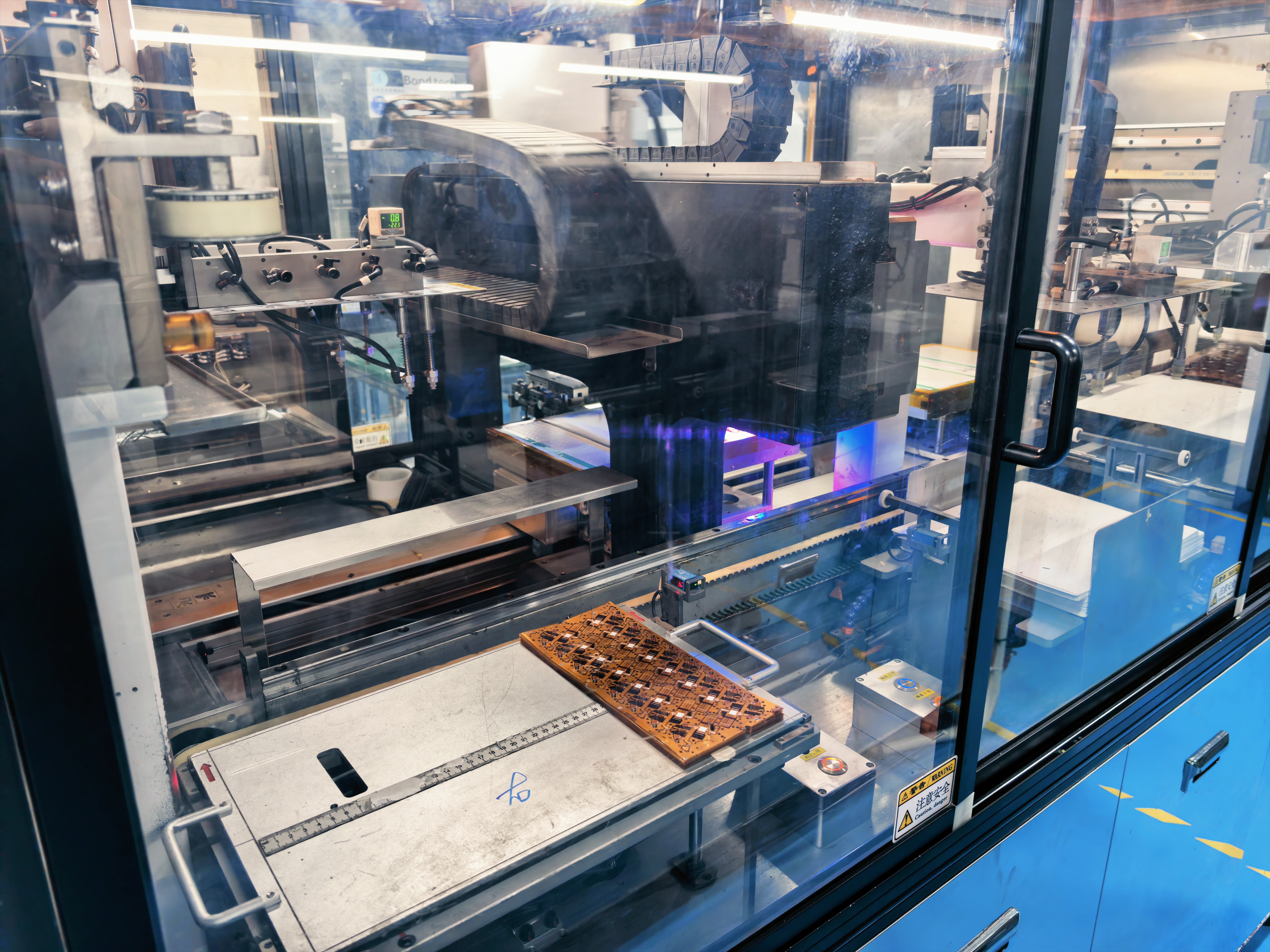

Reinforcement Patch
Reinforcing plate bonding
Lamination
Multi-layer lamination

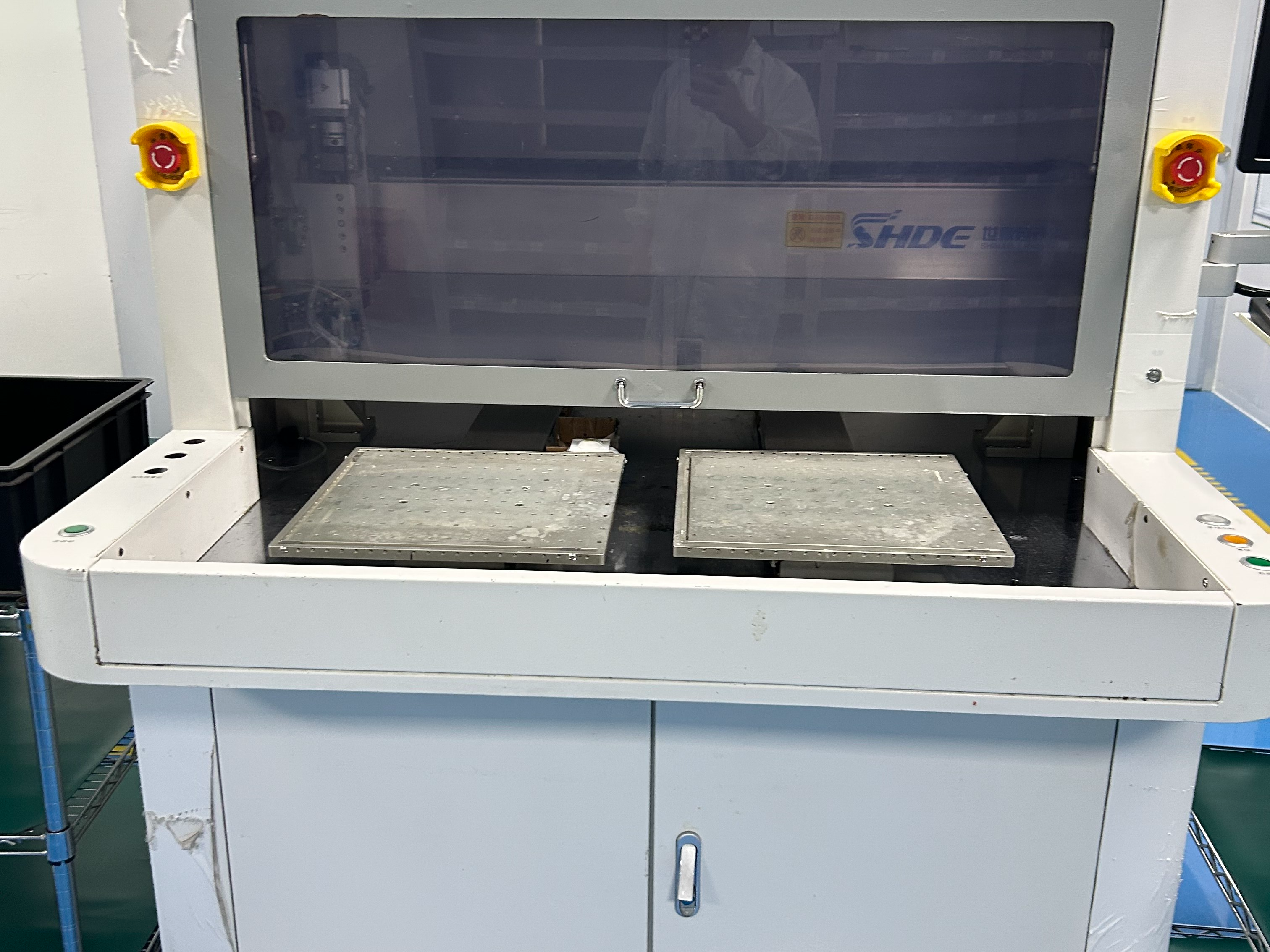

SMT
Surface Mount
Dispense
Dispensing process

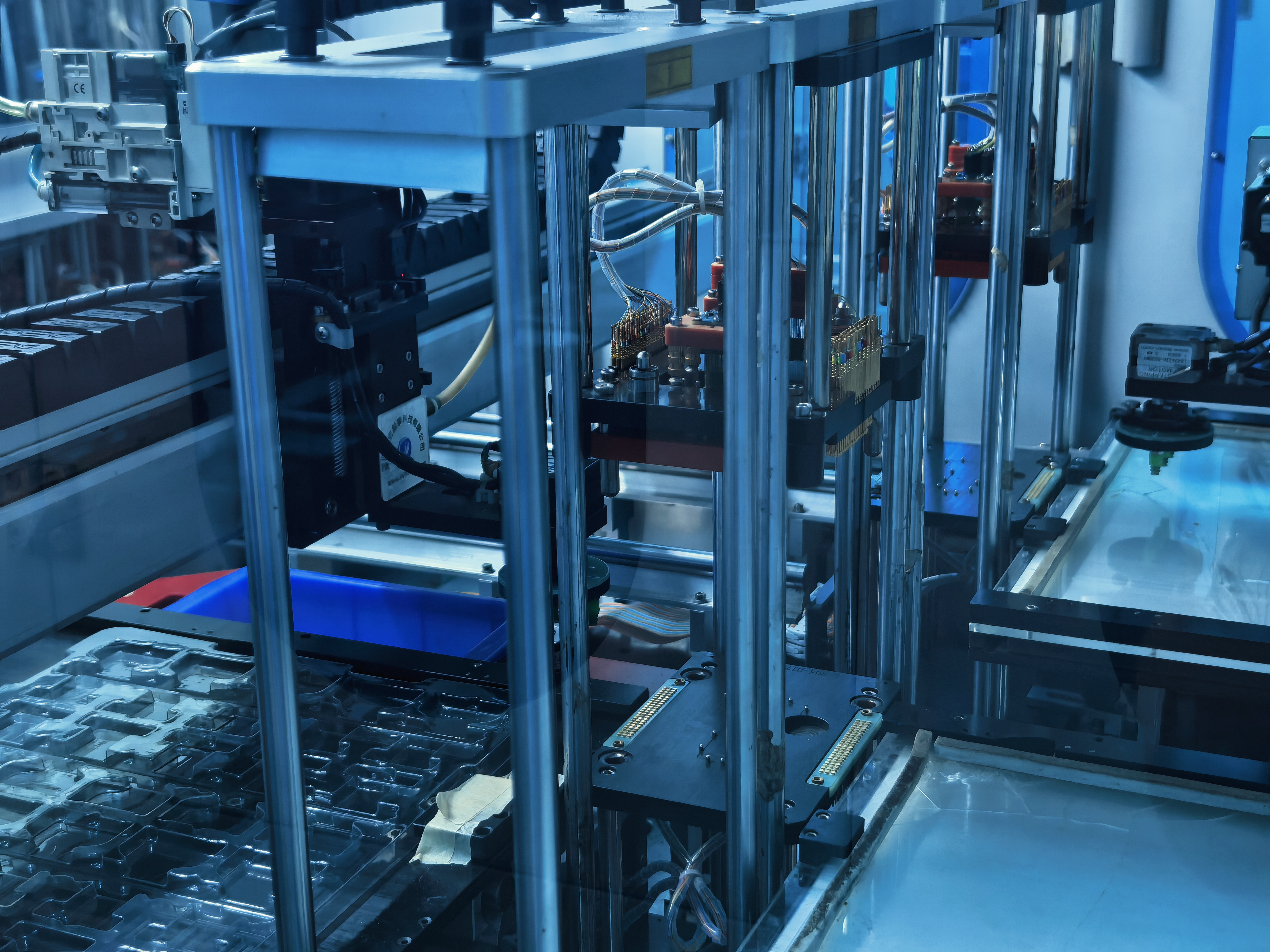

ICT Functional Testing
Online Test
Final Quality Control
Final Quality Inspection
FAQ
Quality Assurance
OBA
Outgoing Quality Control
Ship
Package and Ship
